Single-phase Online UPS — components for every stage

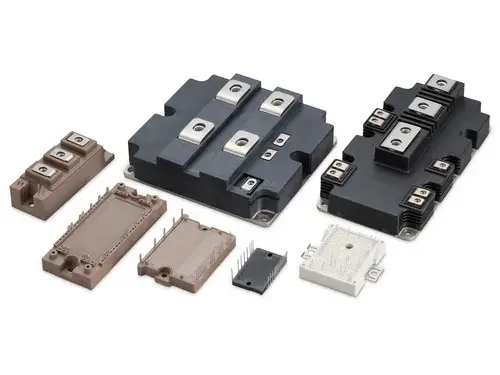

From the rectifier and charger to the IGBT inverter, isolation transformer and output filter — V P Electronics supplies the power semiconductors, VP-made driver and control cards, heat sinks, capacitors, sensors and transformers for online UPS manufacturers and service teams.

How a single-phase online UPS works

Click a block to see the parts used in that stage.

Mains ACRectifier / PFCChargerDC busBatteryIGBT InverterIsolation TransformerOutput ACControl card
1

Rectifier / PFC & Charger

Converts mains AC to a regulated DC bus and charges the battery. SCR-based, PFC (boost) or IGBT-based front ends.

2

DC bus & Battery

Holds the DC bus steady and stores energy for backup.

3

IGBT Inverter

Builds the clean sine-wave output from the DC bus with an IGBT bridge driven by PWM.

4

Control

Online UPS control card handles PWM, synchronisation, protection and display.

5

Isolation Transformer & Output

Isolation transformer and AC filter capacitor give a galvanically isolated, low-distortion output.

FAQ

Can you supply a complete set of parts for one UPS model?

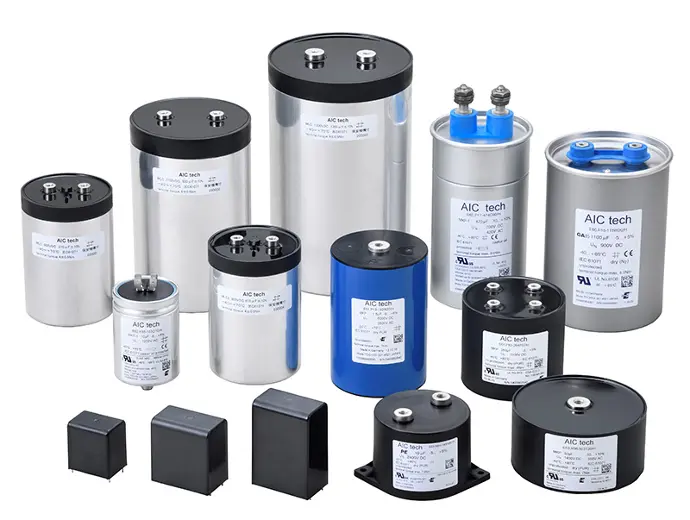

Yes. Send your BOM or the UPS rating (kVA, battery voltage); we quote the semiconductors, cards, capacitors, heat sinks and transformer together.

Do you make the control and driver cards?

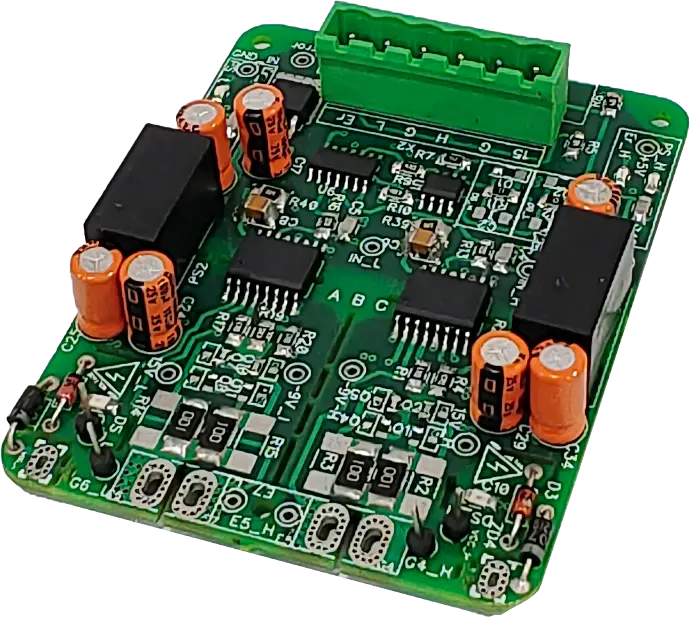

Yes. V P Electronics designs and builds online UPS control cards, IGBT gate drivers and charger cards in Delhi.

Do you also supply three-phase UPS parts?

Yes — 6/12-pulse SCR chargers, 3- and 4-leg IGBT inverter stacks and 30–300 kVA UPS stacks. Ask for the three-phase list.
