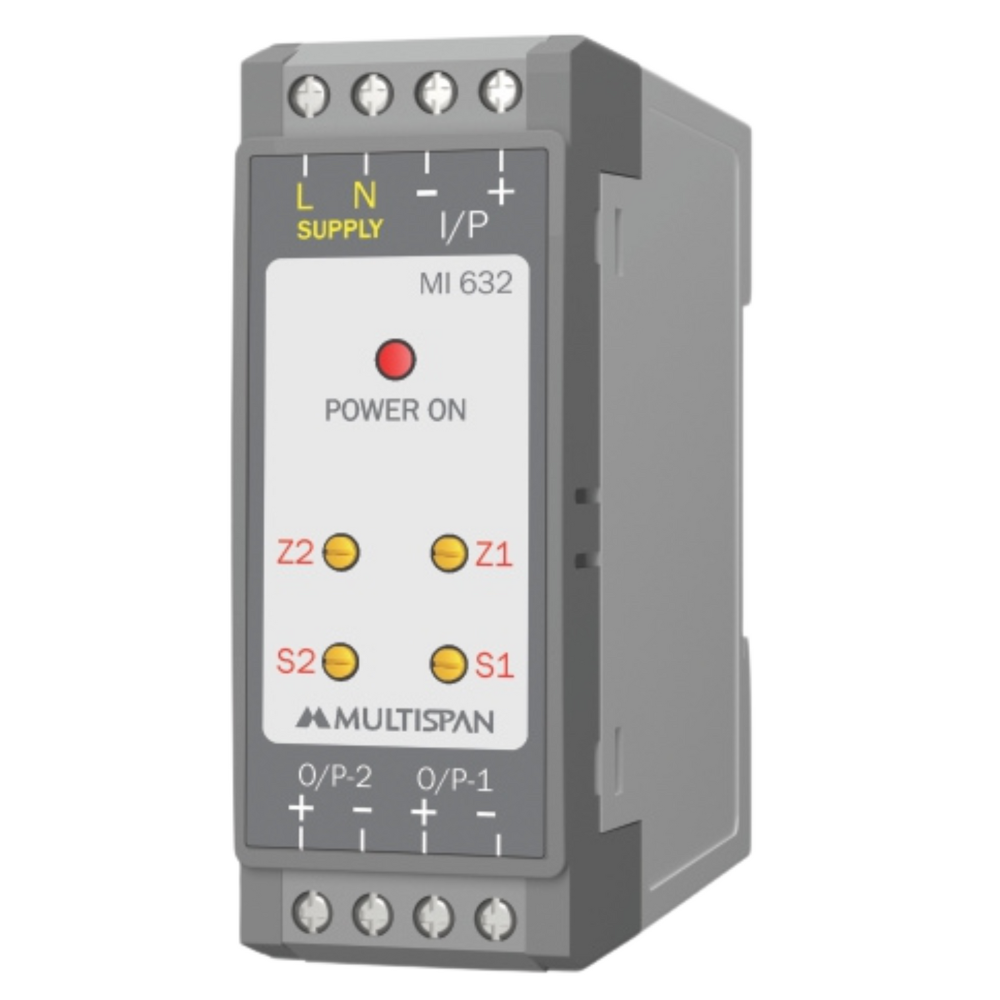

ISOLATOR- I/P 0-4V, O/P 0-10 (SUPPLY 230V50HZ)

INPUT SPECIFICATION
Input 0-20 mA DC, 4-20 mA DC, 0-10 V DC (Factory Set)
Input Inpedance <100Ω
CMRR >120dp (Typical)
Temperature Co-efficient <100 PPM
DIMENSION
Size (mm) 76 (H) X 28 (W) X 85 (D)
OUTPUT SPECIFICATION:
Output 1 & 2 0-20 mA DC, 4-20 mA DC, 0-10 V DC (Factory Set)
Response Type <150ms
Output Inpedance <500Ω
POWER SUPPLY:
Auxiliary Voltage 100 to 270V AC,50/60Hz or 24 V DC (Factory Set)
Power Consumption ( VA Rating ) 5VA @230V AC
ISOLATION:
Isolation Type Optical - 3 way
Isolation between
supply, input & Output

At least 1.5KV AC for 1 min
